跑車改裝熱壓罐應用領域：
1、航空、航天工業領域：制造飛機機翼， 垂尾和前機身；大型運載火箭的殼體， 航天飛機結構件；衛星星體， 太陽能帆飯， 可伸展臂， 支撐體和飛船返回艙等構件；
2、兵器工業領域．再造防護裝甲、兵器、頭盔等構件，
3、電子工業領域： 衛星雷達天線及其支撐結構、太陽能電池翼和外殼等構件；
4、汽車工業領域．制造汽車車身， 受力構件， 傳動軸， 發動機架及其內部構件；
5、軌道交通領域．復合材料高度列車及地鐵門窗、護板、機臺等；
6、軍品、公安反恐領域．復合材料防彈背心、防彈頭盔等；
7、體育領域：復合材料球拍、跳桿、高爾夫球桿、賽艇等．
8、醫學領域醫用X光機、CT機的機架、醫用床板和矯形支架等．
l. Aviation and aerospace industry: manufacturing aircraft wings， vertical tail and front fuselage;
shells of large launch vehicles, space shuttle structural parts;satellite stars, solar panels, extendable arms, supports and spacecraft return
capsules, etc. member;
2. Weapon industry: Rebuilding protective armor, weapons,helmets and other components:
3. Electronics industry: satellite antenna and its supporting structure, solar cell wing and shell and other components;
4. Automotive industry: manufacture automobile body. Force Components, transmission shaft. engine frame and internal Components.
5. Rail transit field: composite height trains and subway doors and windows;
6. Public security anti-terrorism field: composite material bulletproof vests, bulletproof helmets. etc.
7. Sports: composite material rackets,jumpers, golf clubs,rowing, etc
8. Medical field: medical X-ray machine, CT machine frame,medical bed board and orthopedic support.
熱壓罐的介紹：
熱壓罐是一種快開門的壓力容器， 它在制造的時候有著國家相關的依據標準． 是一種針對聚合物基復合材料成型工藝特點的工藝設備、針對大型產量大的碳纖維制品固化成型、熱壓罐固化成型的效果遠比烤箱的效果好， 故而目前高端的碳纖維制品紛紛采用真空熱壓罐， 以滿足軍民用品的需求。
熱壓罐的組成：
熱壓罐是由承壓罐體、空壓機及過濾系統、真空系統、控制系統等部分組成． 它的工作原理是將高強度玻璃纖維、碳纖維、棚纖維、芳綸纖維等增強材料和樹脂（含預浸材料）按設計方向和順序逐層鋪放到模具上， 達到規定厚度后，放入到真空袋中抽真空， 經加壓、加熱、固化、冷卻、脫模、修整而獲得高性能復合材料制品．
Autoclave is a kind of pressure vessel with quick-opening door. It has relevant national standards when it is manufactured. It is a kind of process equipment based on the characteristics of the polymer matrix composite material molding process. The effect of curing and molding of large-volume carbon fiber products is much better than that of the oven. Therefore, the current high-end carbon fiber products are vacuum heat Pressure tanks to meet the needs of military and civilian supplies.
It consists of a pressure-containing tank, an air compressor and a filtration system, a vacuum system. and a control system. Its working principle is that high-strength glass fiber, carbon fiber boron fiber, aramid fiber and other reinforcing materials and resins (including prepreg materials) are laid on the mold layer by layer according to the design direction and order. after reaching the specified thickness, put in A vacuum is evacuated in a vacuum bag, and a high-performance composite material product is obtained by pressing, heating, curing, cooling, demoulding, and trimming.
熱壓罐的優勢：EQUIPMENT ADVANTAGES
科學設計、精工打造、嚴格的質量管理，和同行業的其他廠家相比， 本公司生產的熱壓罐滿足波音標準具有如下顯著優點
(1）采用工控PLC自動控制系統， 精度達到士0.5-2℃
(2）適合各種不同復合材料的固化處理．
(3）罐內熱分布均勻， 壓力恒定．
(4）完善的壓力控制,控制精度高．
(5）開門方式為熱壓罐快開門雙安全連鎖．同步報警、關緊后升壓、泄壓后開門．
(6）熱壓罐保溫層采用硅酸鋁棉， 封頭采用雙層保溫， 外加不銹鋼外襯保溫效果好．
(7）采用西門子全自動控制系統， 節約能源、節省人刀、完全滿足產品性能需求
(8)．公司擁有健全穩定的技術團隊和售后服務隊伍，為用戶提供從設備、工藝、材料、產品的整套復合材料生產線。
Scientific design, precision construction, strict quality management, compared with other manufacturers in the same industry, the company’s autoclave satisfy boeing standard has the following significant advantages:
(1) The PLC automatic control system is adopted, and the accuracy reaches±1-2℃
(2) Suitable for curing treatment of various composite materials.
(3) The heat distri bution in the tank is uniform and the pressure is constant.
{4) Perfect pressure control and high control precision .
{5) The door opening method is autoclave quick opening double safety chain. Synchronous alarm, boost after closing, and open the door after releasing pressure.
(6) The insulation layer of the autoclave is made of aluminosilicate cotton, the head is double-layered， and the stainless steel lining is good for thermal insulation.
(7) The Siemens automatic control system is adopted to save energy, manpower and fully meet product performance requirements.
(8) The company has a sound and stable technical team and after-sales service team, to provide users with equipment, technology, materials, products from the complete set of composite production lines.

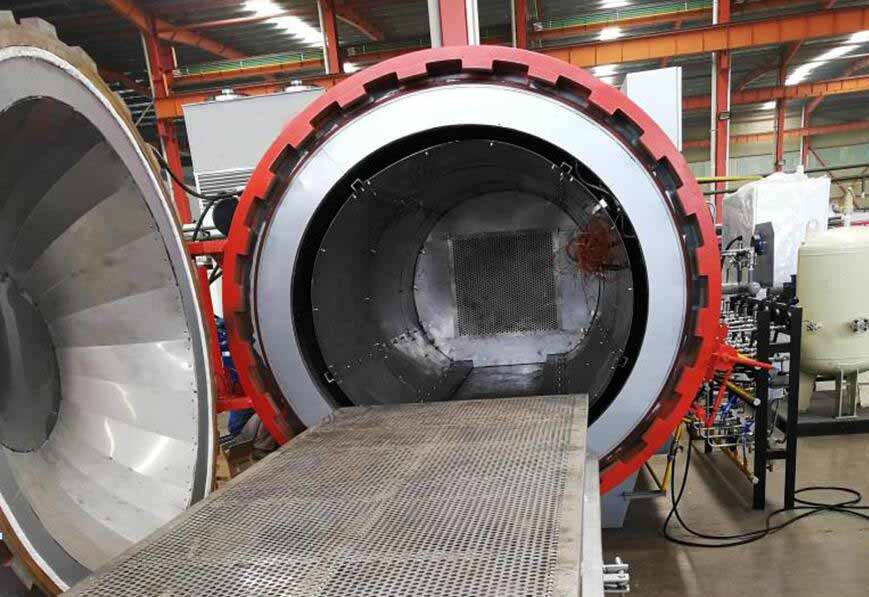

內部結構INTERNAL STRUCTURE

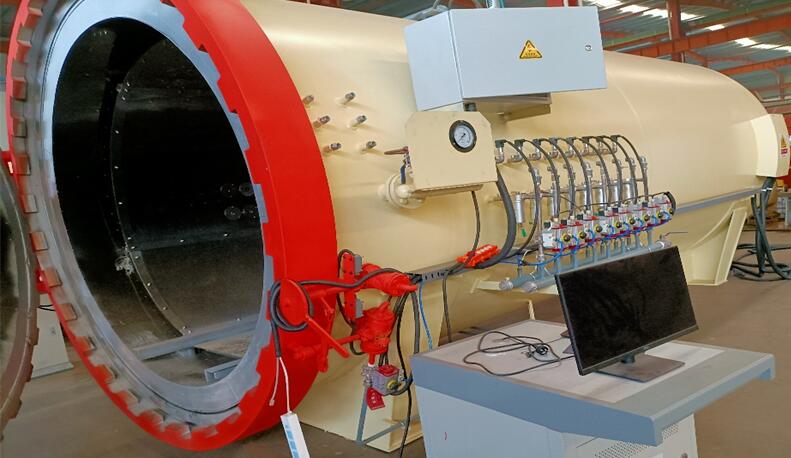

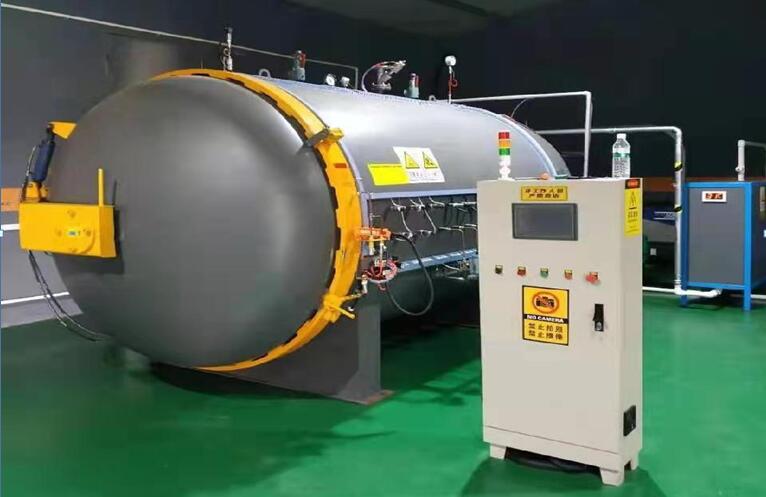

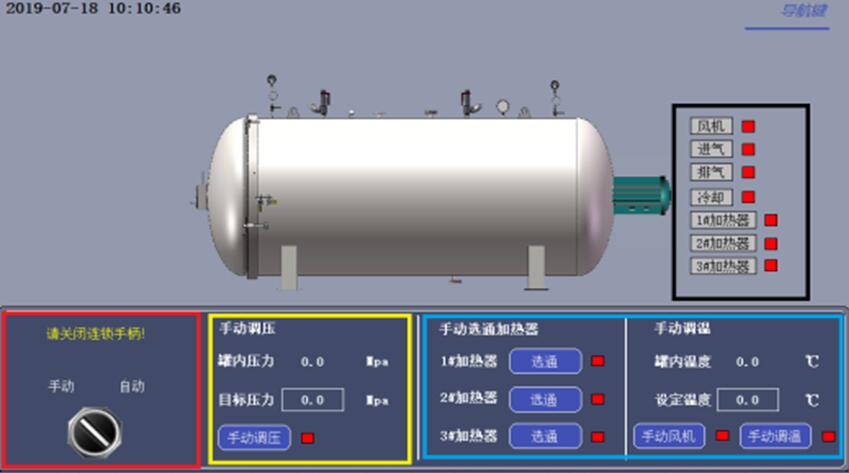

熱壓罐控制CONTROL

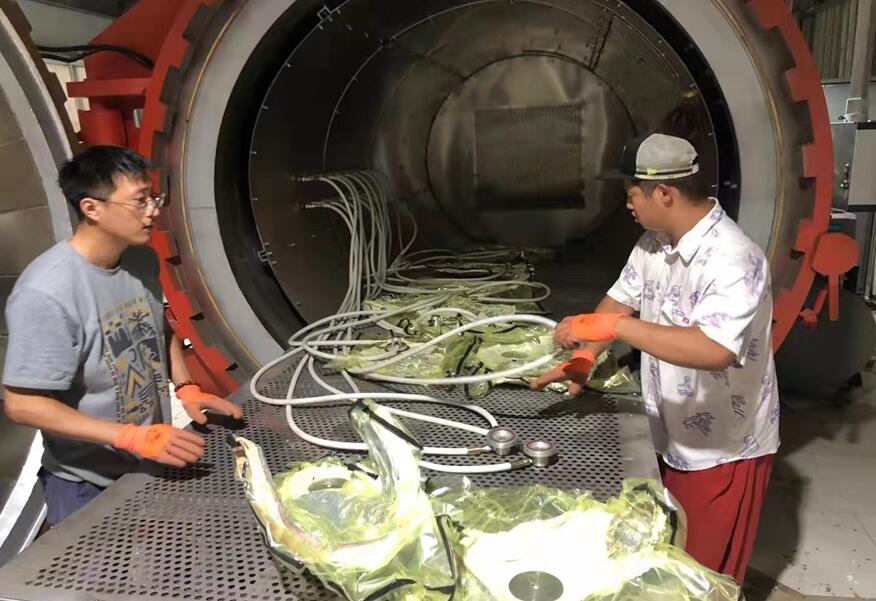

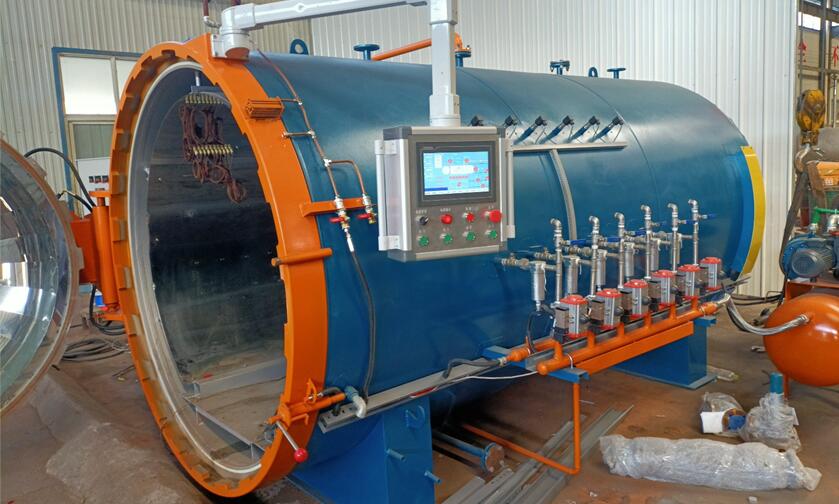

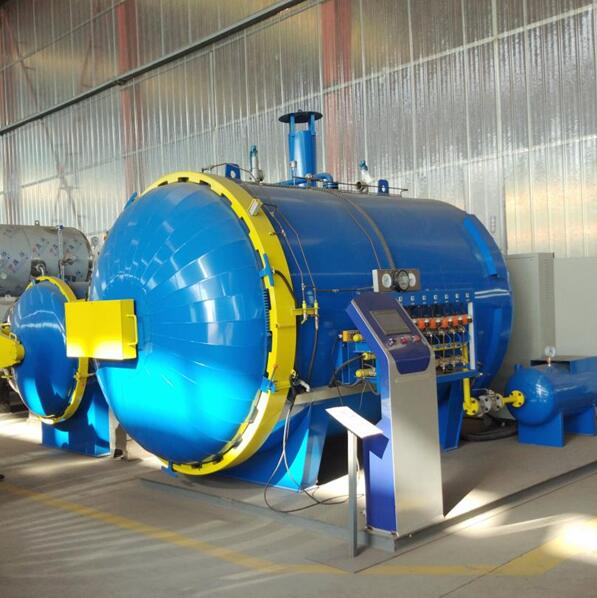

熱壓罐的使用現場：

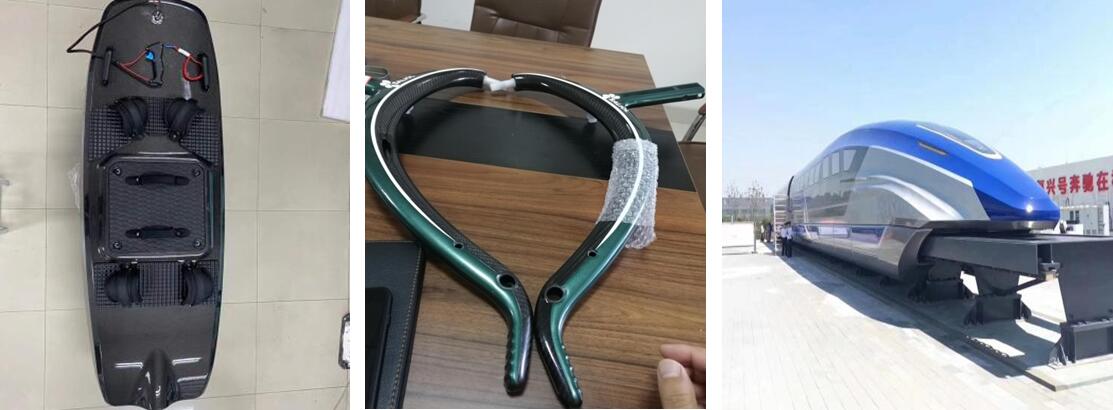

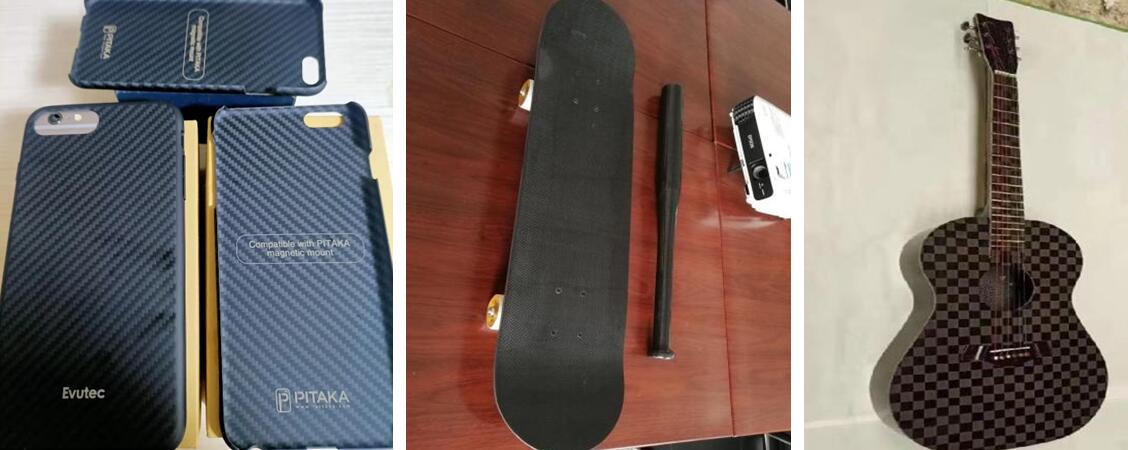

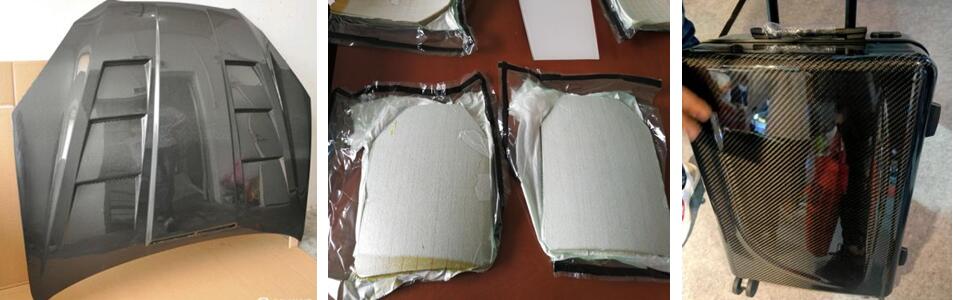

熱壓罐成型制品：碳纖維制品、玻璃纖維制品、石英纖維制品、聚酰亞胺制品、氰酸酯制品
